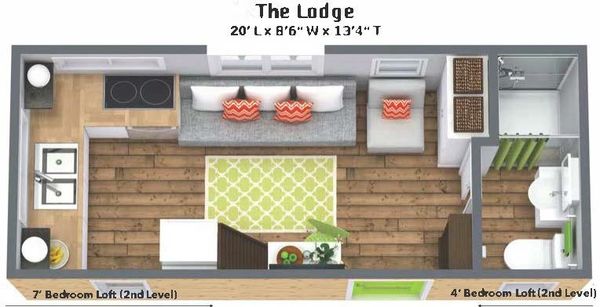

The Lodge
NOAH Certified Home (complete with 5 stage inspection and seal)
THE FEATURES LISTED BELOW ARE INCLUDED IN THE BASE PRICE OF
THE LODGE HOME.........
248 square feet of living space
Home Measures 8' wide x 20' long x 13'6"
tall
Trailer size: 8’x 20' double axle trailer
(14,000 lbs axels) . 5 1/2" x 3/8" thick steel frame, with trailer
brakes.
Sheet metal installed on trailer floor frame
to protect Tiny House from all weather elements and critters.
All framing reinforced with 1/2" bolts at
corners and base plates.
All 2x4 studs reinforced with hurricane
straps.
All 2x6 roof trusses are secured with metal
hurricane ties.
All exterior plywood wrap glued and
nailed to studs.
R13 insulation in the walls, R21 insulation in
the ceiling and floor
All water lines are run on the
interior of the tiny home (hidden), to prevent from freezing and
breaking.
All PVC grey water drain pipes are stubbed out
to bottom exterior of home. Sewer truck will need to be provided and
installed by client or third party.
100 AMP electric service
All plug in receptacles are 12/2 20 AMP wire
throughout home per NOAH code.
248 square feet of living space
Home Measures 8' wide x 20' long x 13'6" tall
Trailer size: 8’x 20' double axle trailer (14,000 lbs axels) . 5 1/2" x 3/8" thick steel frame, with trailer brakes.
Sheet metal installed on trailer floor frame to protect Tiny House from all weather elements and critters.
All framing reinforced with 1/2" bolts at corners and base plates.
All 2x4 studs reinforced with hurricane straps.
All 2x6 roof trusses are secured with metal hurricane ties.
All exterior plywood wrap glued and nailed to studs.
R13 insulation in the walls, R21 insulation in the ceiling and floor
All water lines are run on the interior of the tiny home (hidden), to prevent from freezing and breaking.
All PVC grey water drain pipes are stubbed out to bottom exterior of home. Sewer truck will need to be provided and installed by client or third party.
100 AMP electric service
All plug in receptacles are 12/2 20 AMP wire throughout home per NOAH code.
