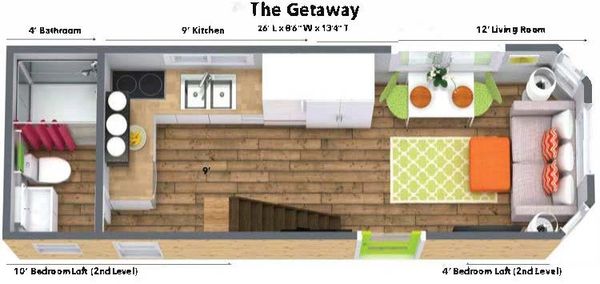

- 320 square feet of living space
- Home Measures 8' wide x 26' long x 13'6" tall
- Trailer size: 8’ wide x 26' long double axle trailer (14,000 lbs axels) 5 1/2" x 3/8" thick steel frame, with trailer brakes.
- Home on wheels appoximate weight 11,000 - 11,500 lbs
- Sheet metal installed on trailer floor frame to protect Tiny House from all weather elements and critters.
- All framing reinforced with 1/2" bolts at corners and base plates.
- All 2x4 studs reinforced with hurricane straps.
- All 2x6 roof trusses are secured with metal hurricane ties.
- All exterior plywood wrap glued and nailed to studs.
- R13 insulation in the walls, R21 insulation in the ceiling and floor
- All water lines are run on the interior of the tiny home (hidden), to prevent from freezing and breaking.
- All PVC grey water drain pipes are stubbed out to bottom exterior of home. Sewer truck will need to be provided and installed by client or third party.
- 50 AMP service includes (optional 100 amp service available).
- All plug in receptacles are 12/2 20 AMP wire throughout home approx every 6' per NOAH code.

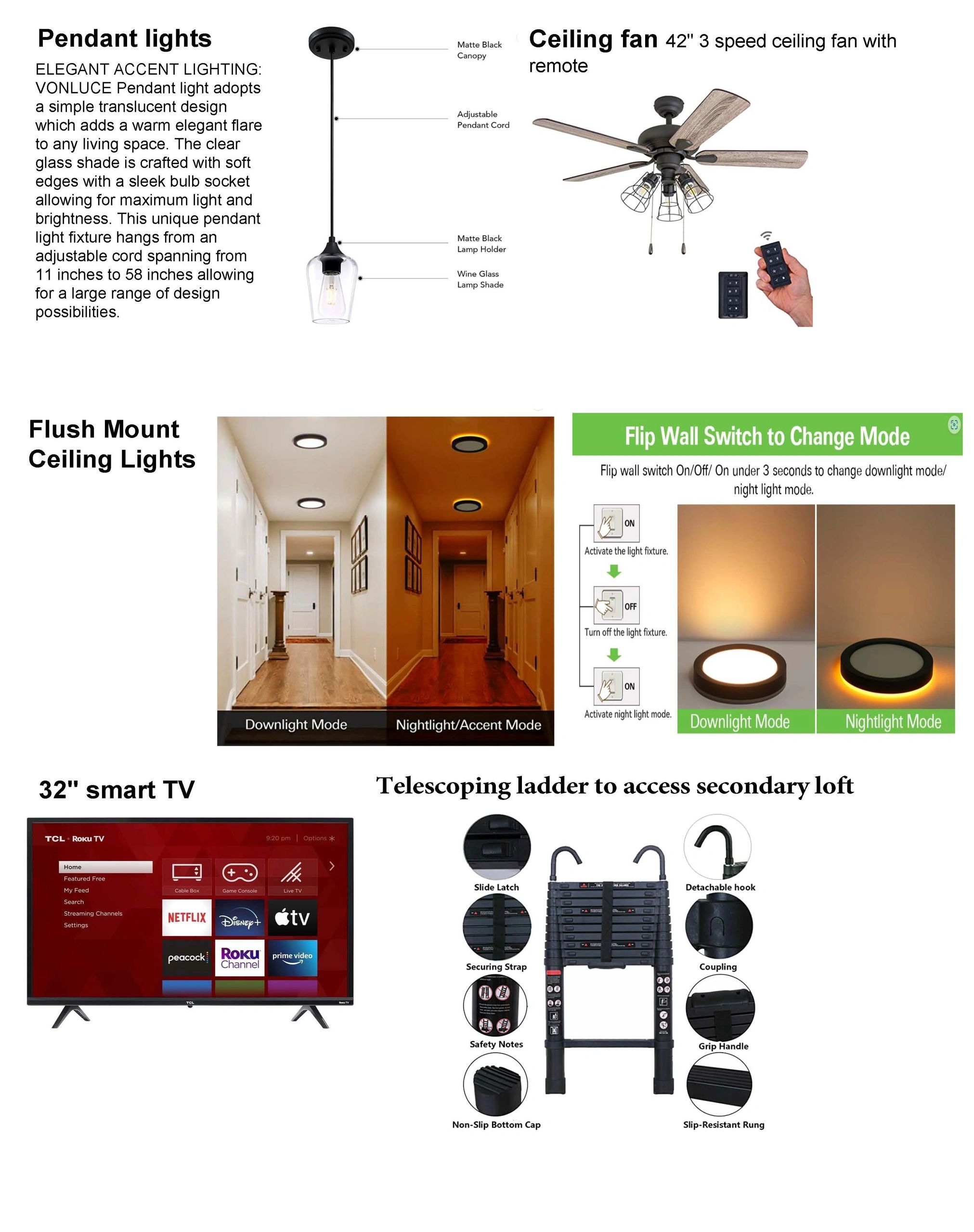

- All lighting are fixtures are LED lighting-1 light in loft bedroom, 1 in bathroom, 1 in kitchen, ceiling fan with lights in living room, 1 in living room on half wall of loft, 1 exterior porch light.
Heat & A/C

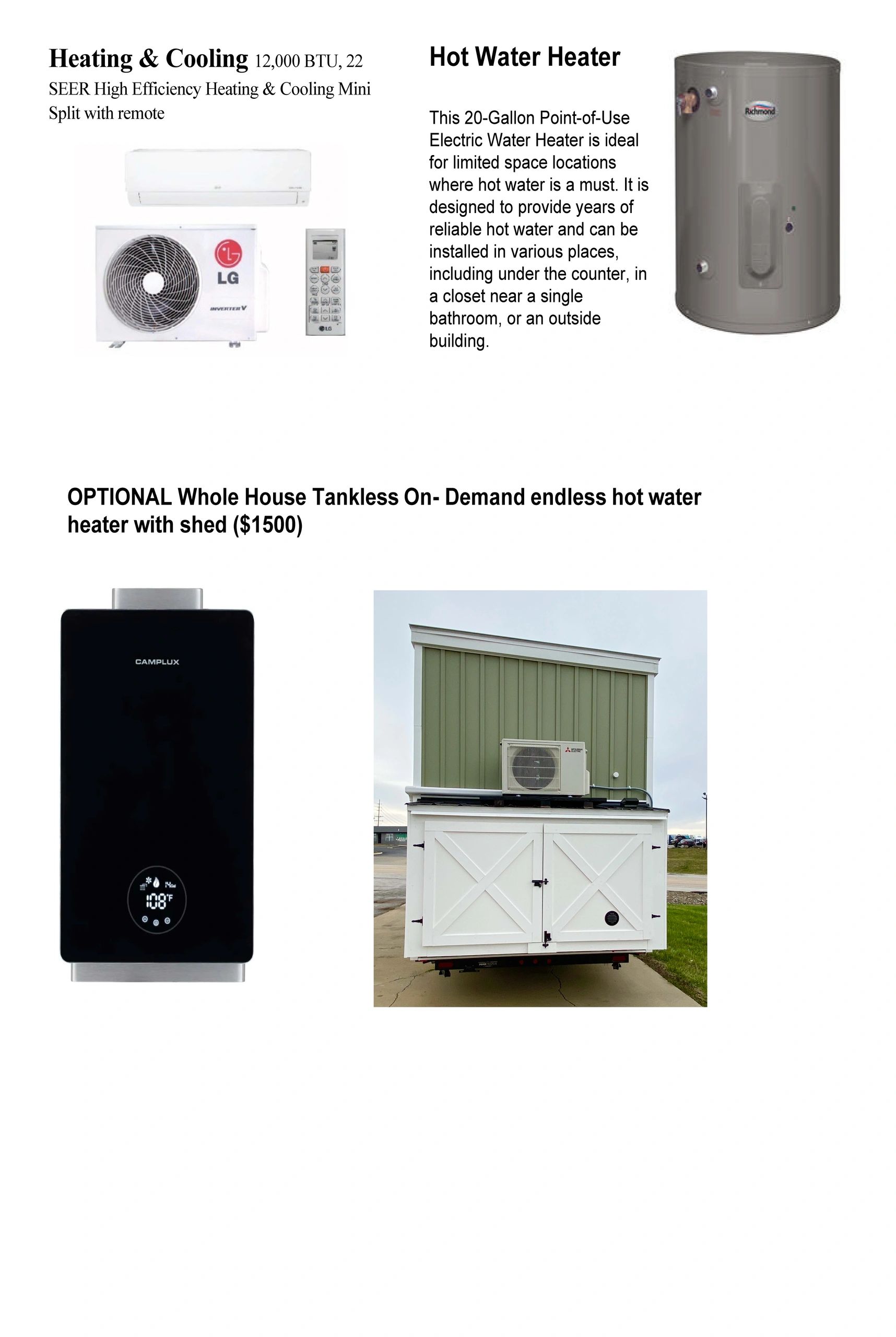

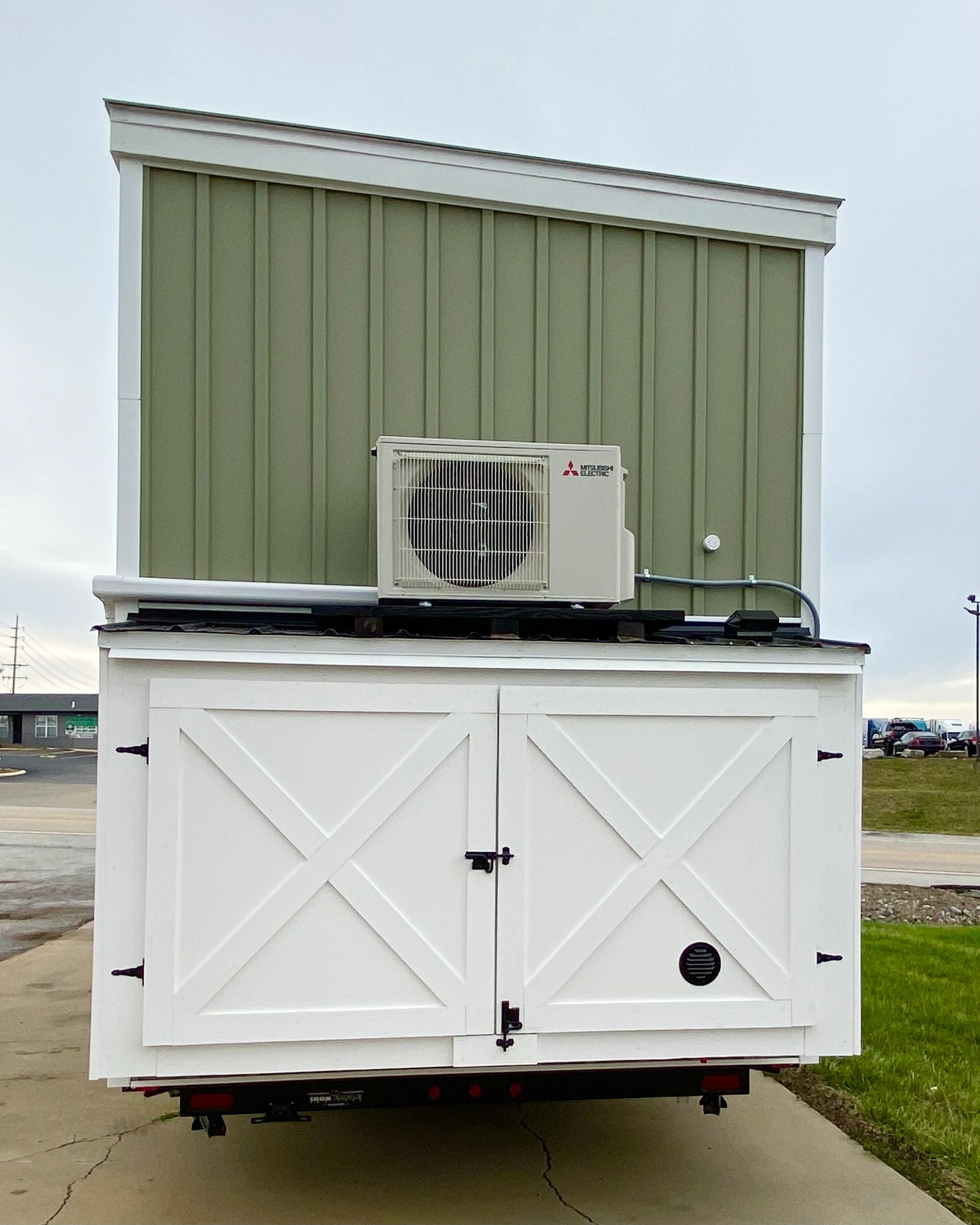

Mitsubishi Electric Mini Split system installed in guest loft with condenser on tongue of trailer.

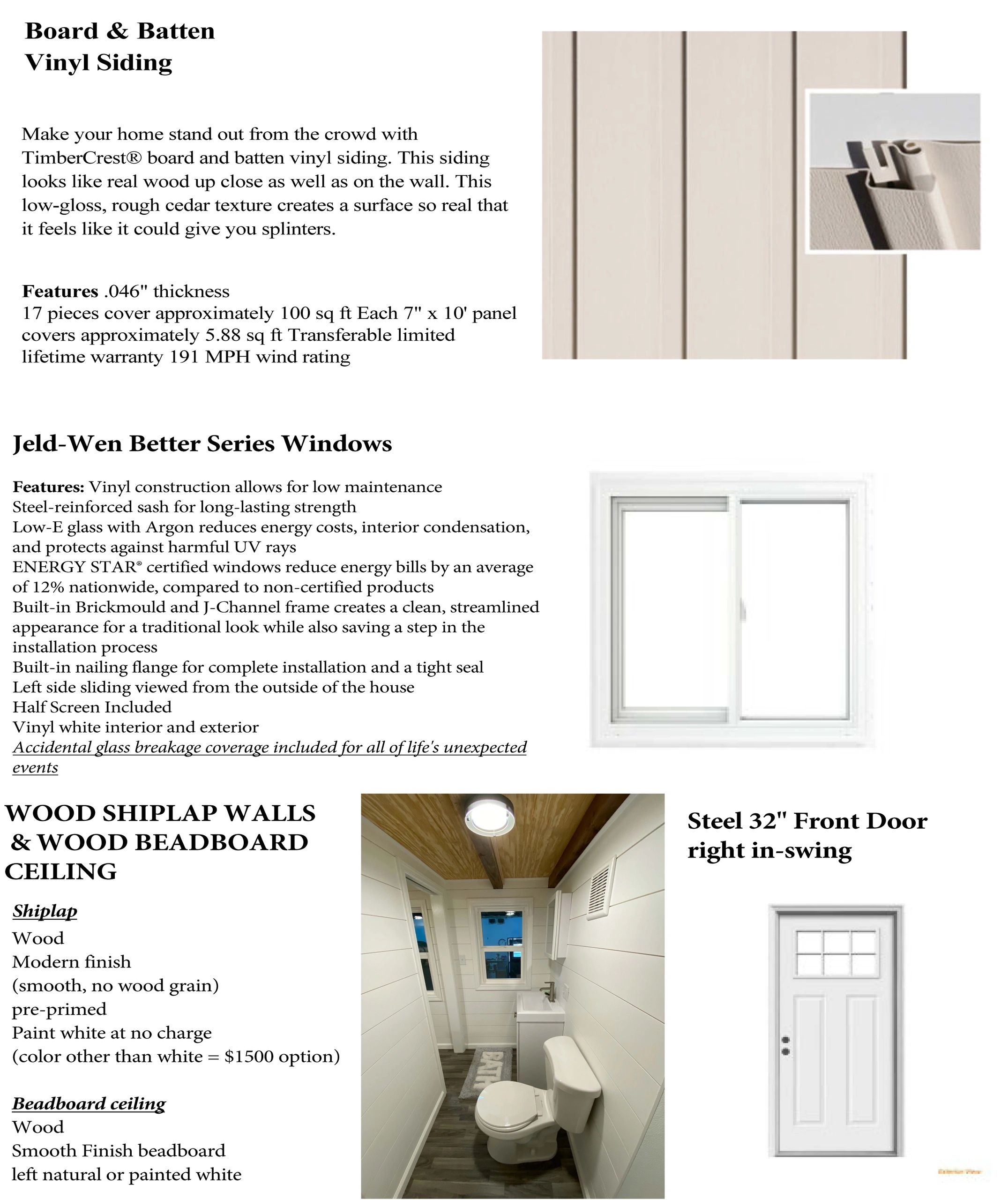

Maintenance free vinyl board and batten siding (Manor Grey), white single hung tilt-in windows, with metal roof. Shown: Lime Green exterior front door color (standard color is white color front door). White Aluminum Fascia.

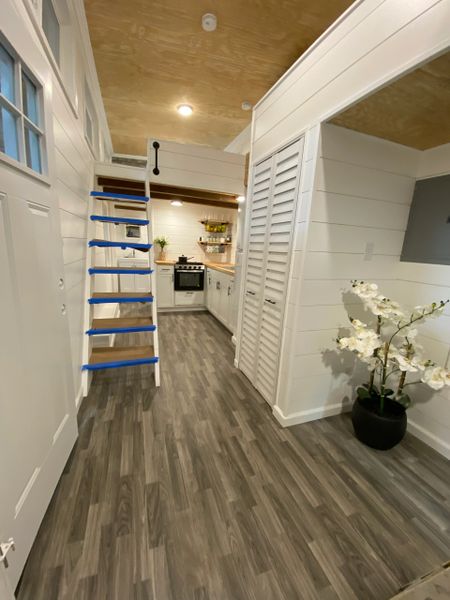

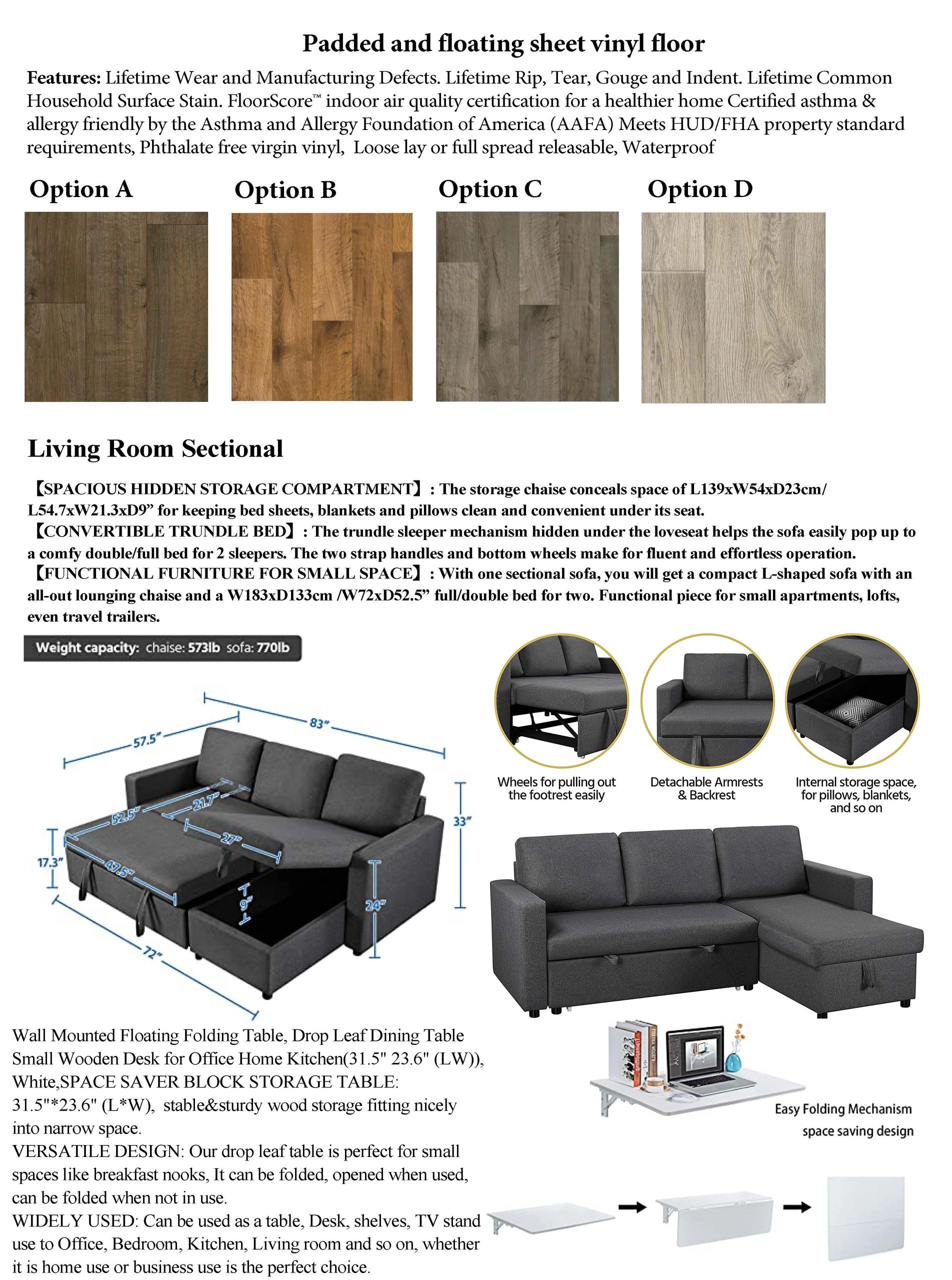

Linoleum wood grain flooring throughout main level

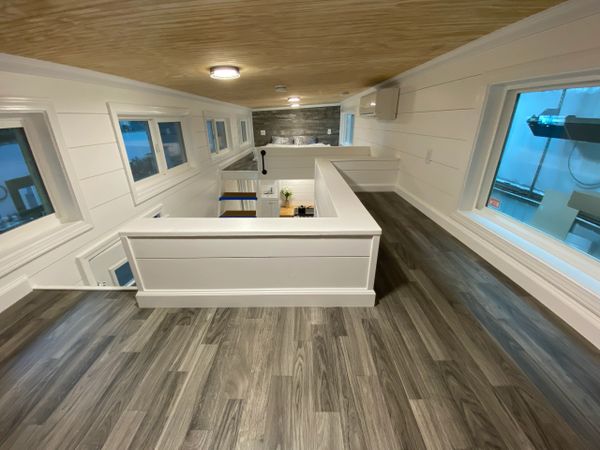

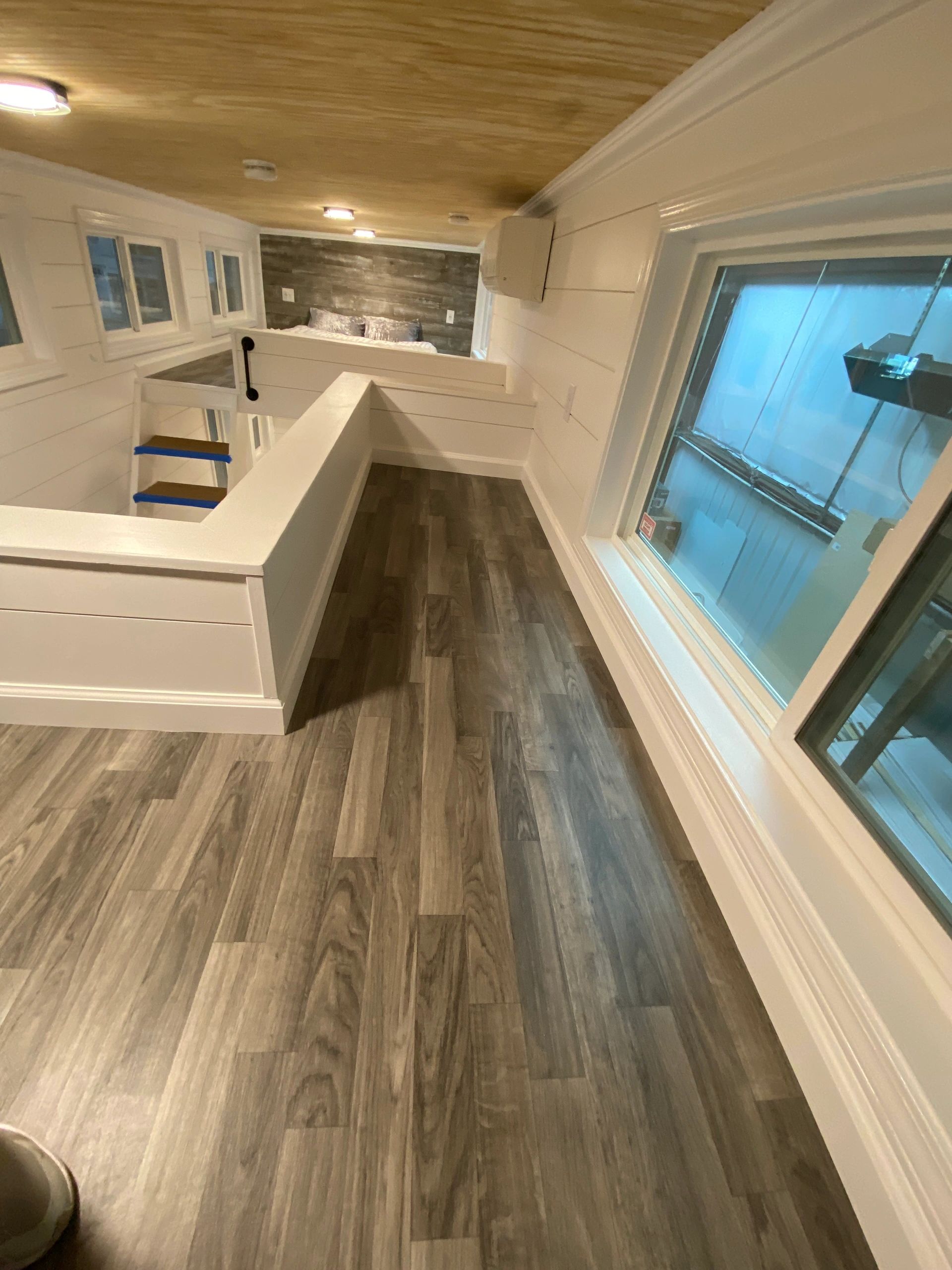

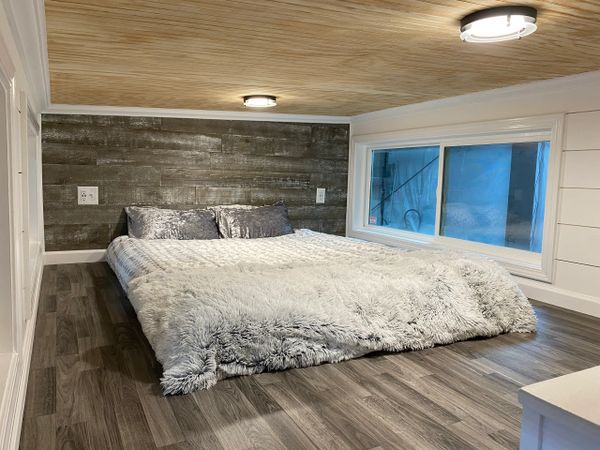

Master Bedroom upper loft area
(7.5’x10’), Half-wall for privacy. Stairway with black pipe railing, Shown: Natural Beige carpet. Standard flooring is Linoleum wood grain flooring
2nd upper level loft
(7.5 x4’) with telescopic aluminum ladder (optional custom built wall hung wooden ladder available), Shown: natural beige carpet. Standard flooring is Linoleum wood grain flooring

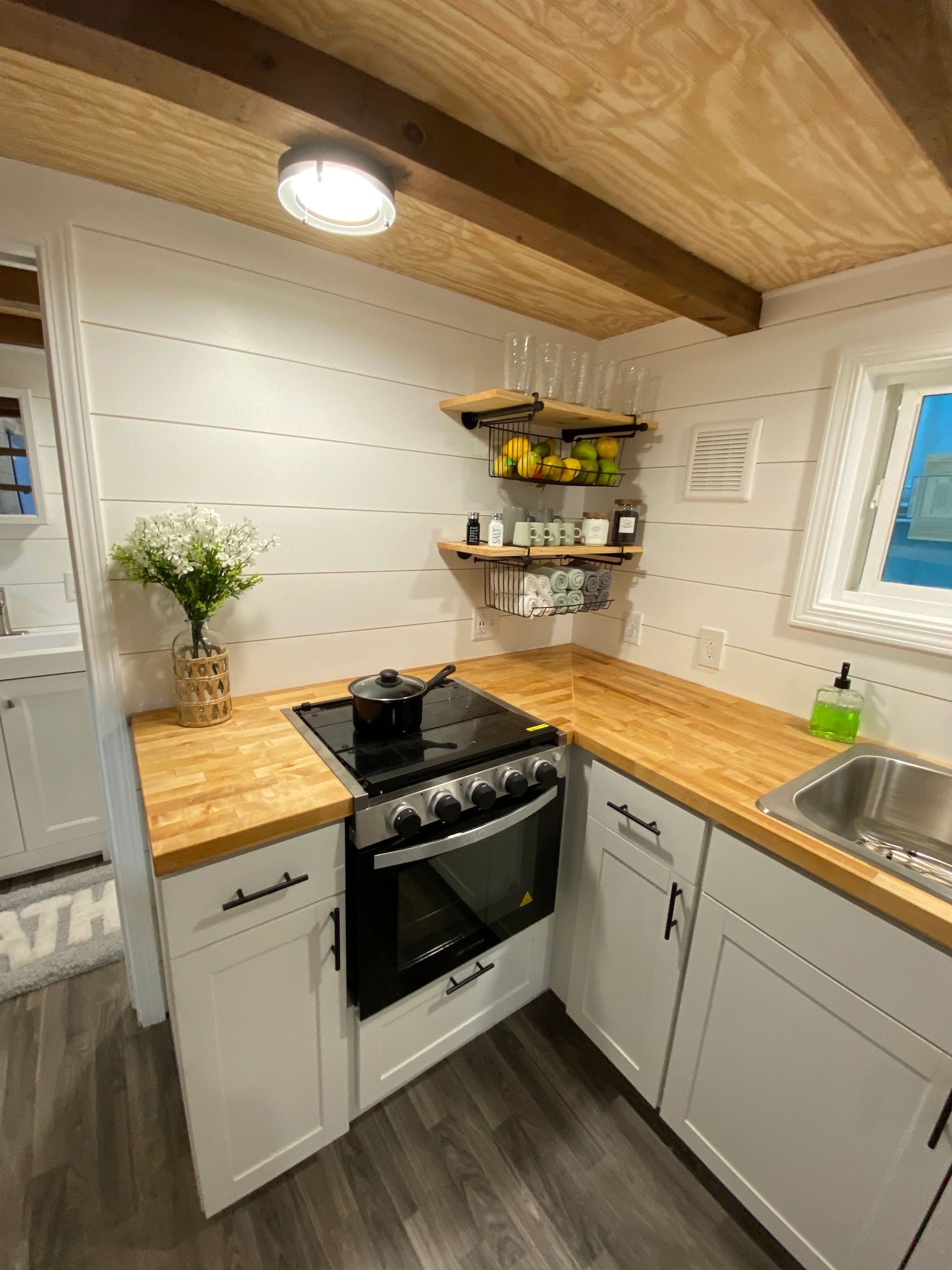

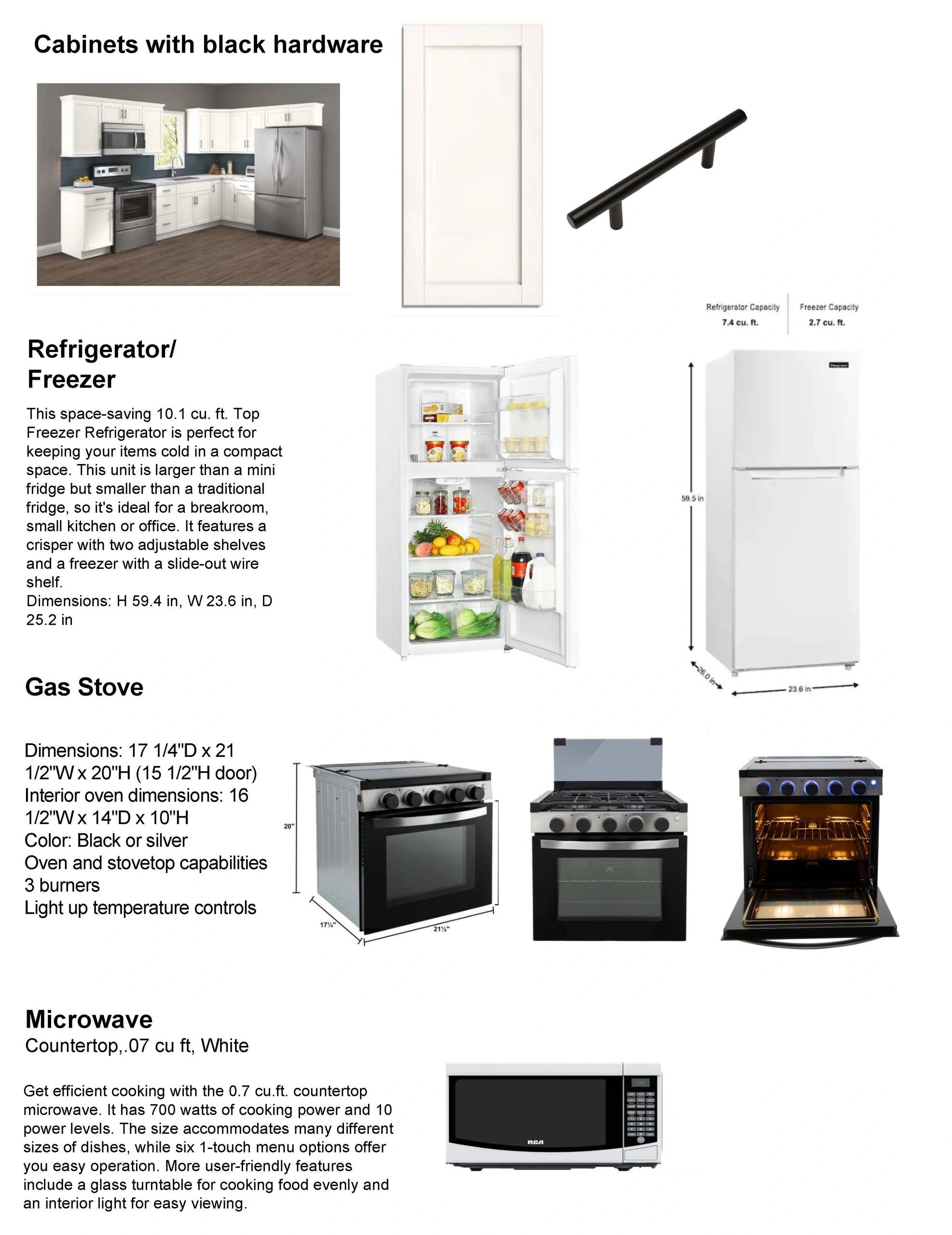

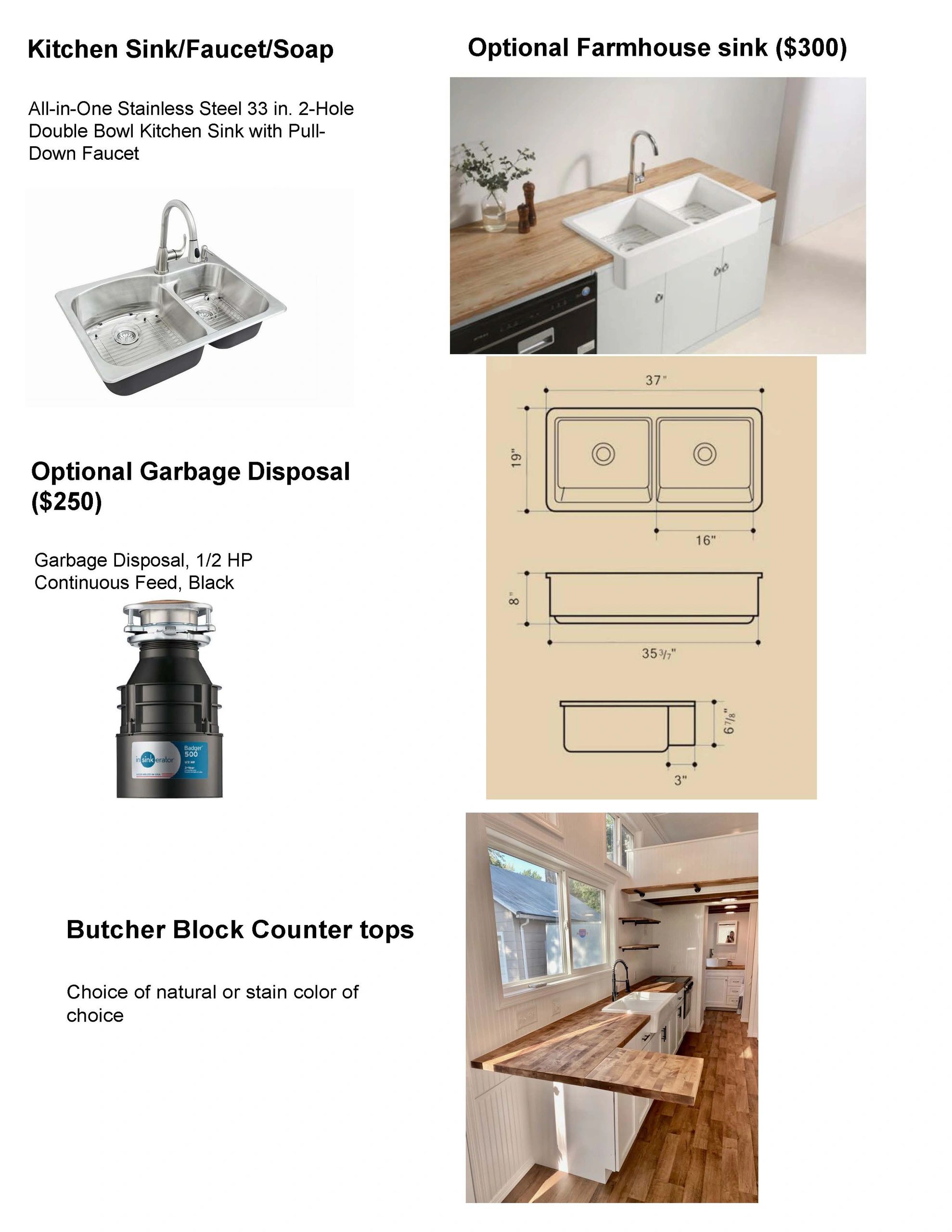

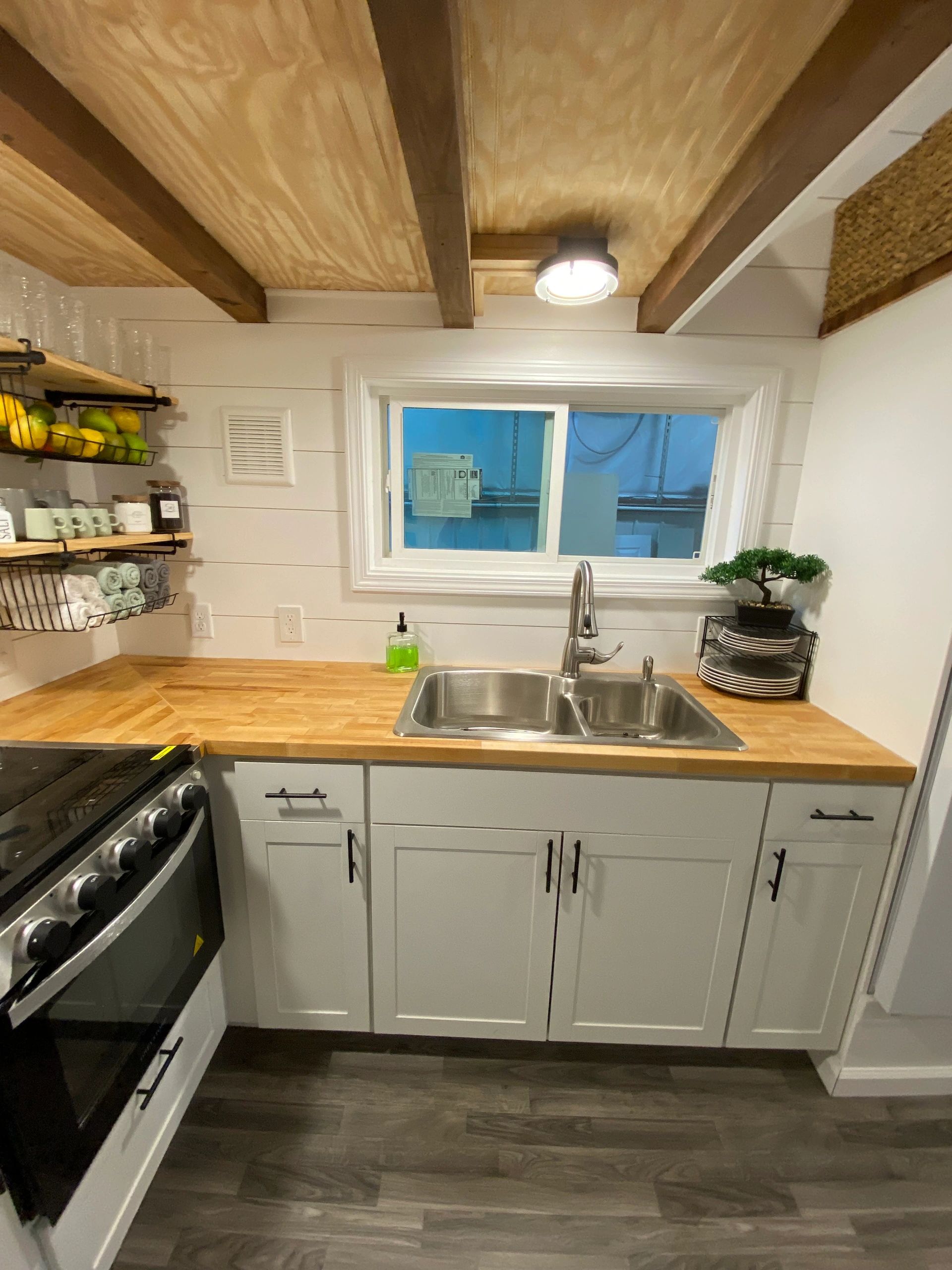

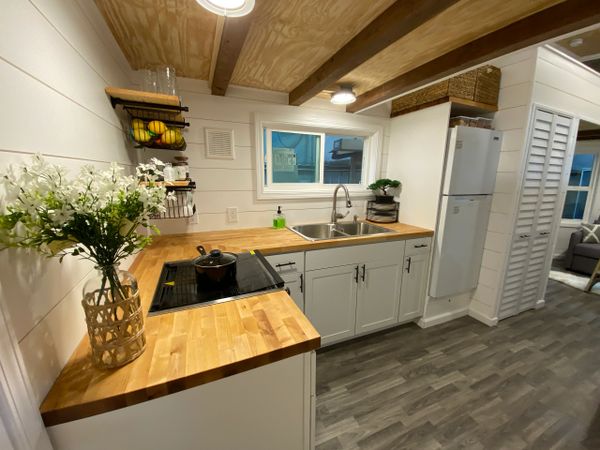

White Criterion 7.4 cu.ft. refrigerator, full size sink, full size pre-finished white cabinets, microwave, portable two burner Cuisineart cooktop, butcher block counter tops. Kitchen table under stairs. 20 gallon hot water heater is hidden in dead space of corner kitchen cabinet.

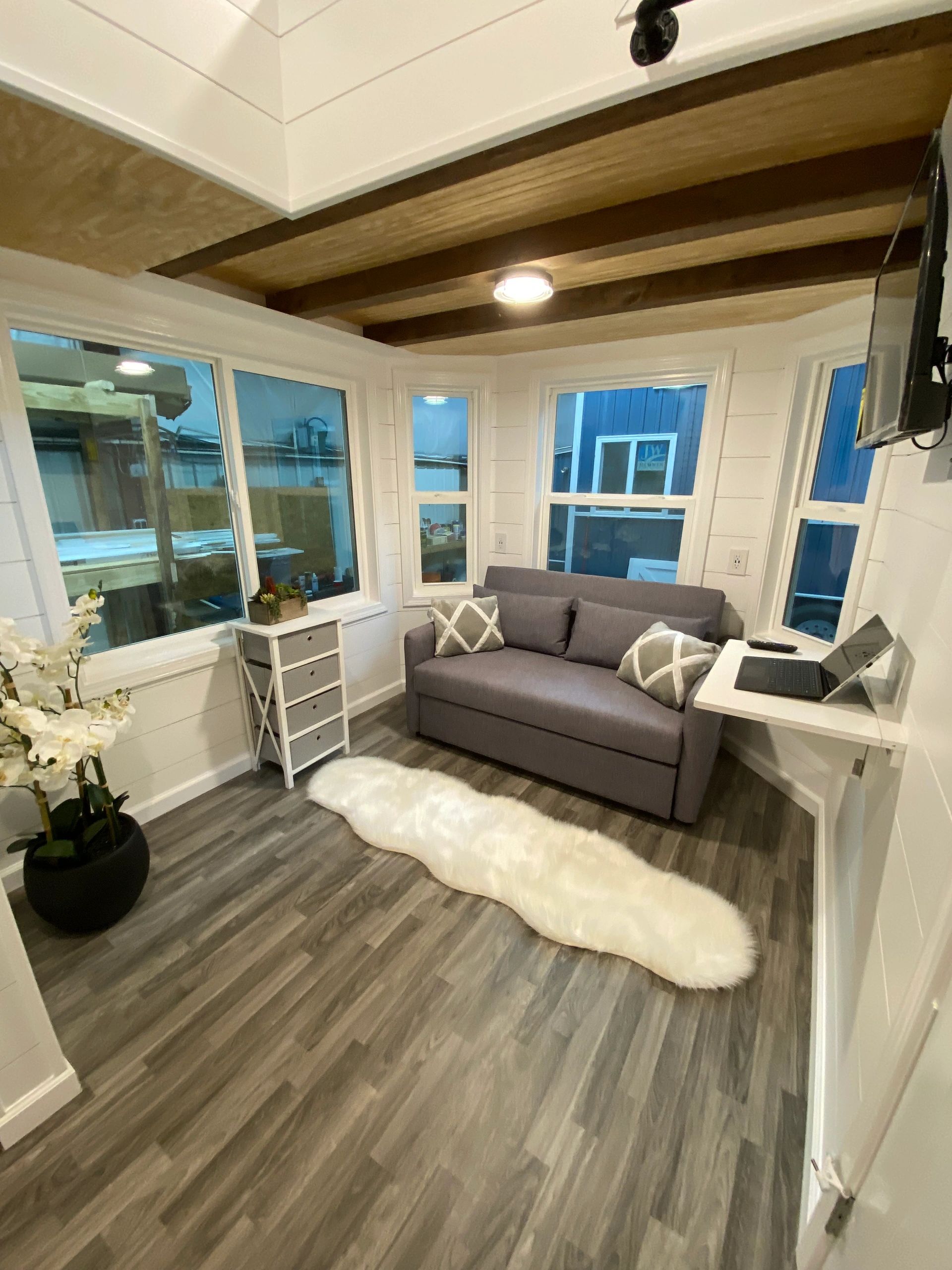

Living room features
32” flat screen TV, ceiling fan. Includes (IKEA) love seat pull-out couch in bay area, (IKEA) fold up table.

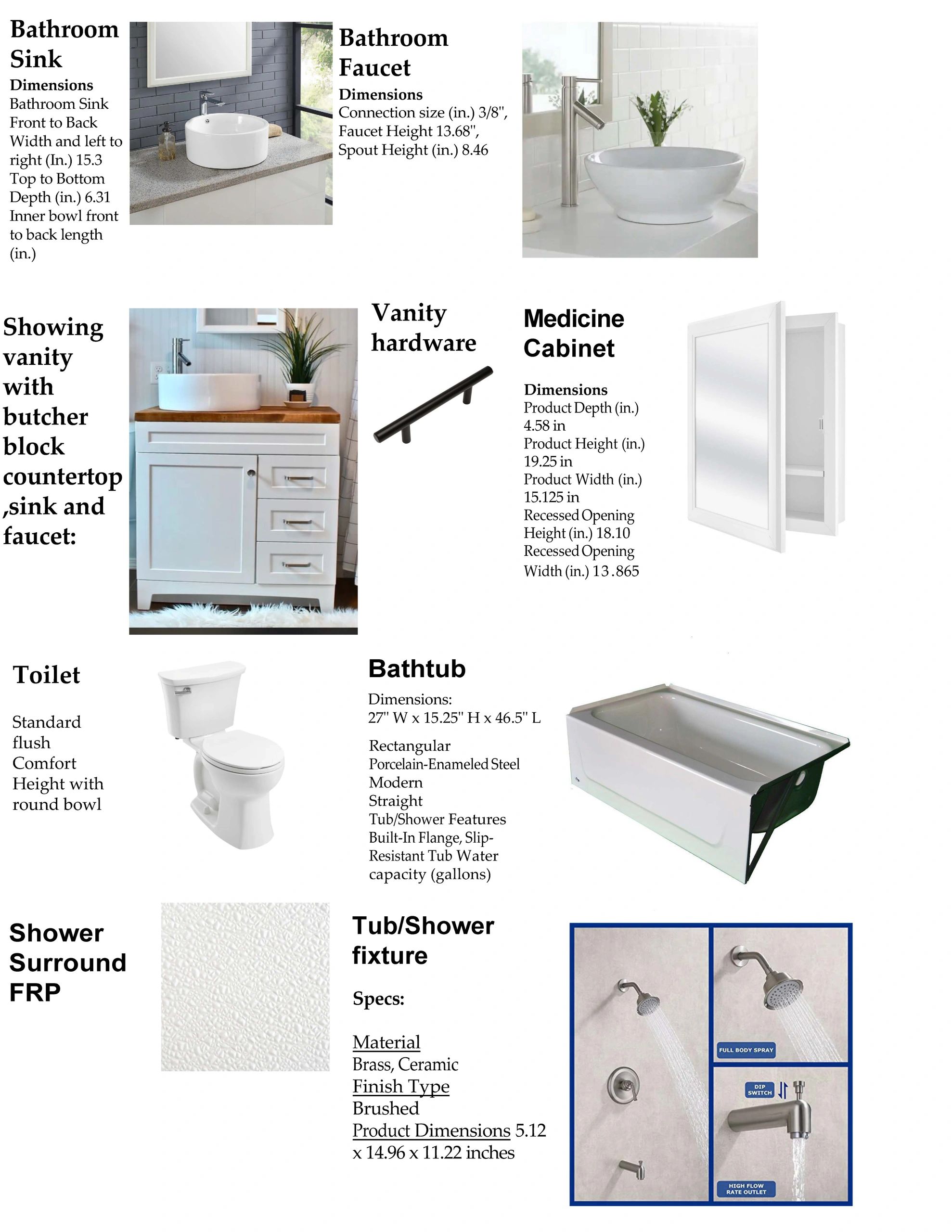

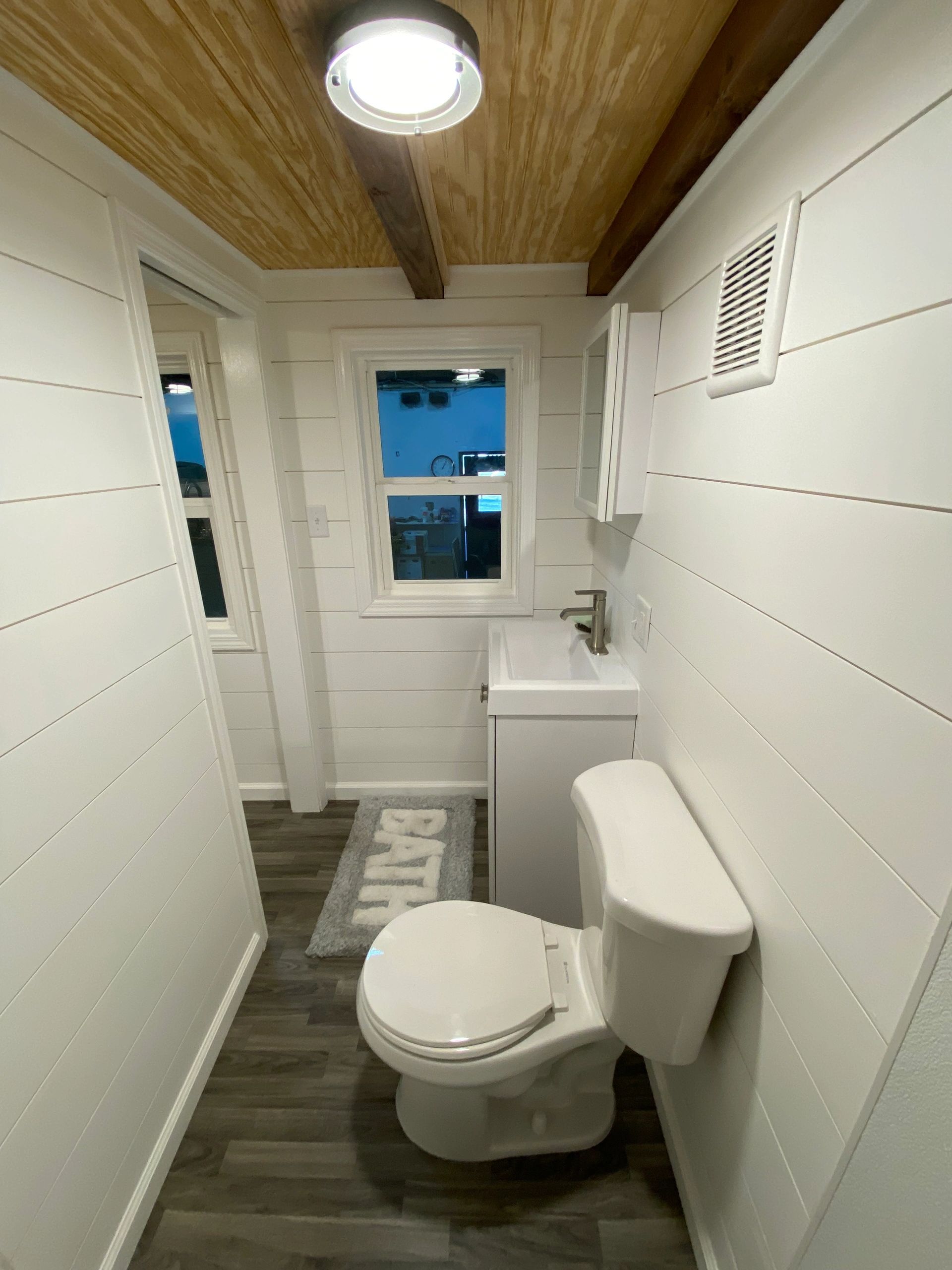

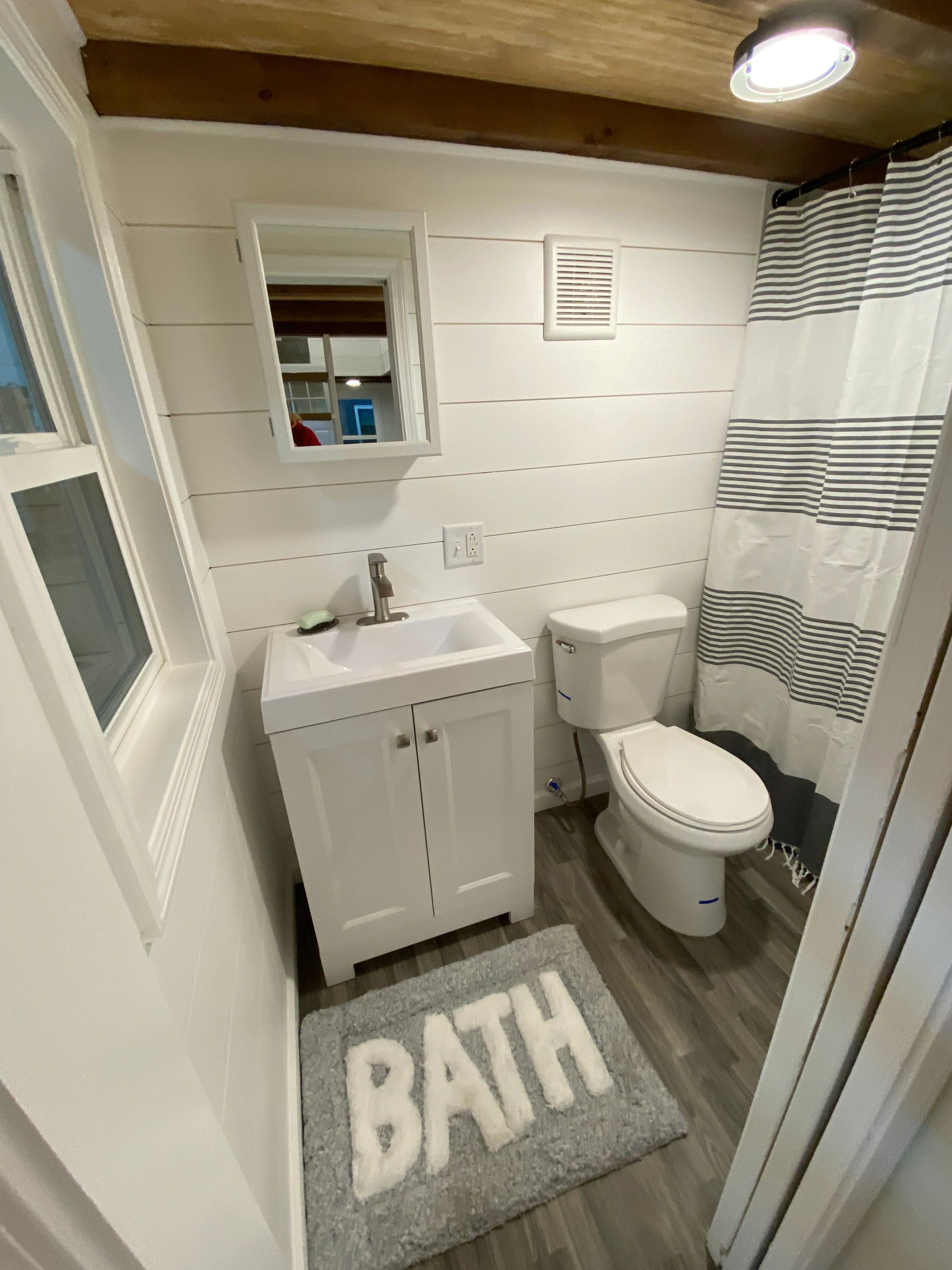

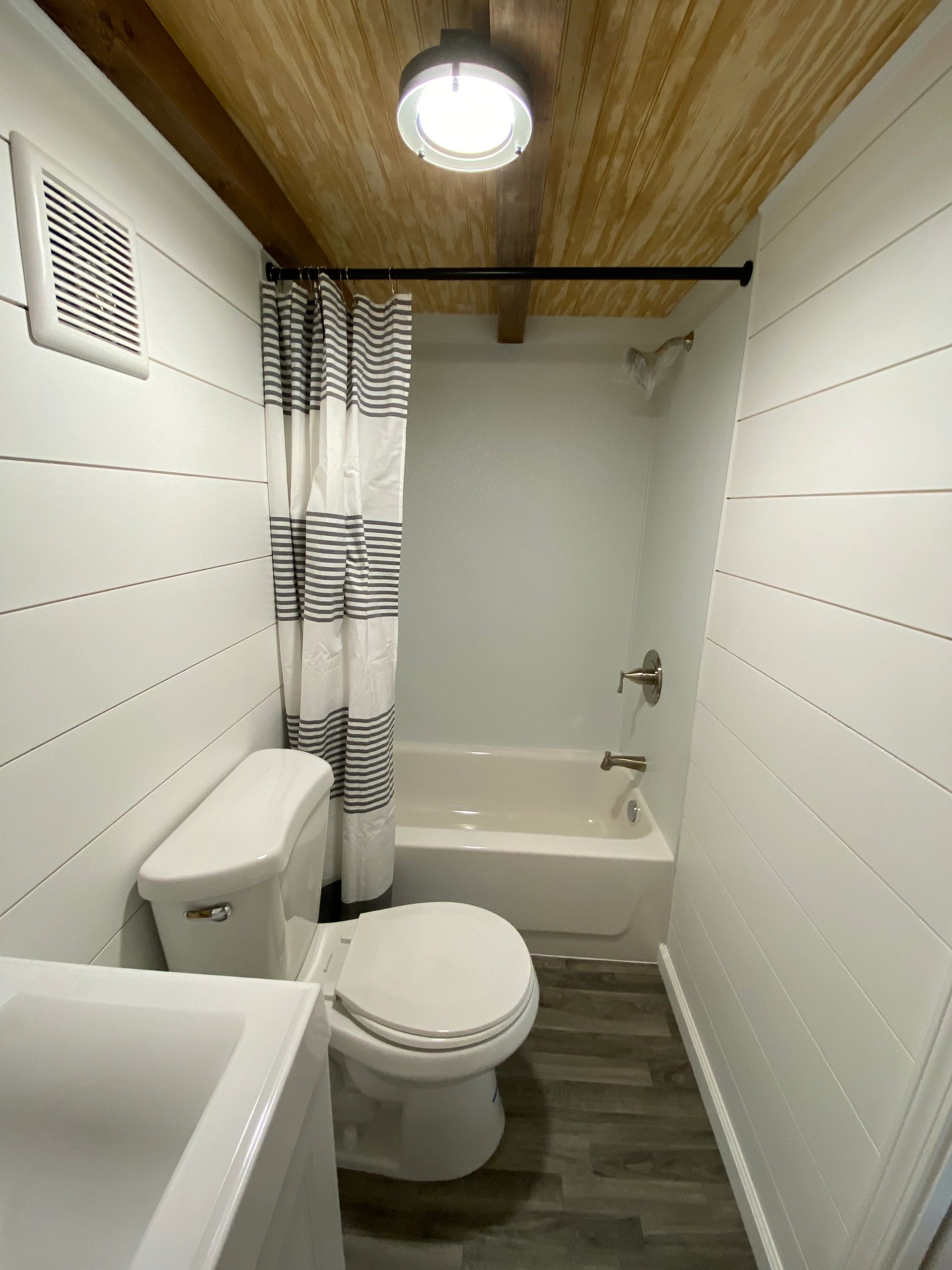

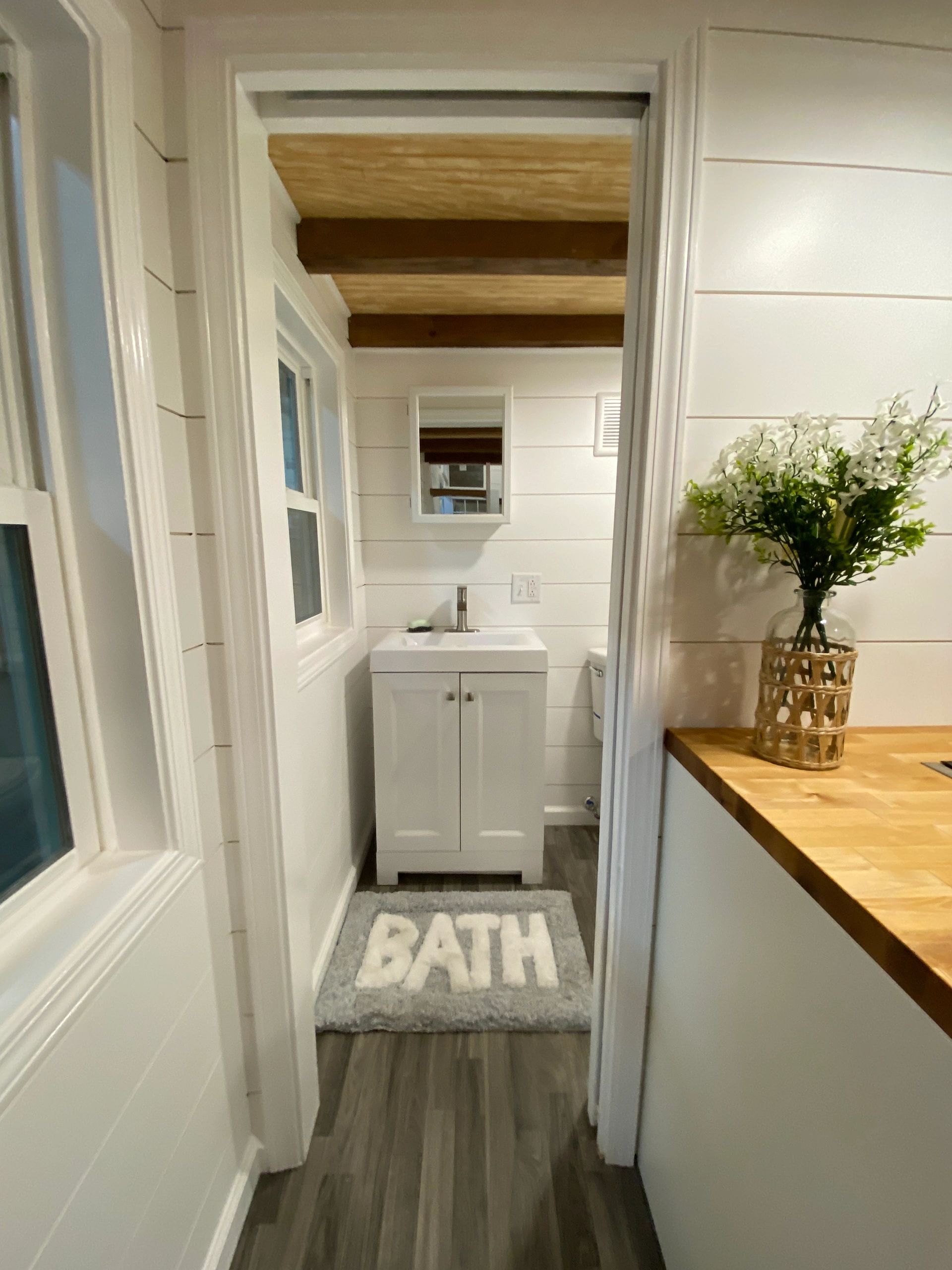

48" shower, regular flush toilet, ceiling exhaust fan, vanity cabinet and mirror cabinet. Includes shower curtain and liner.
Does not include utility hookup. Third party required to level home, anchor home, install main sewer trunk for grey water, connect electricity, water, and sewer.
